D201A/D201B 2018-12-14T19:40:23+00:00

Project Description

NA001/NA002; NB001/NB002

PRODUCT FEATURES

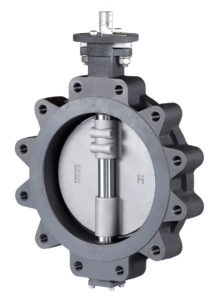

  • Double Eccentric Butterfly Valve
  • Lug type / Wafer type
  • Pressure Rating: Class 150
  • Investment or Sand Casting Body
  • Fully compliant with API 609 and ASME B16.34
  • Rated at full ASME operating pressure for bi-directional dead-end service with no downstream flange
  • Large diameter 17-4ph stainless shafts provide api 609 shaft strength safety factors
  • Manufactured and Tested to API 598

SPECIFICATION

  • Pressure Rating:

For CF8M, Class 150 at 275 PSI WOG

For WCB, Class 150 at 285 PSI WOG

  • Size Available: 2” to 12”
