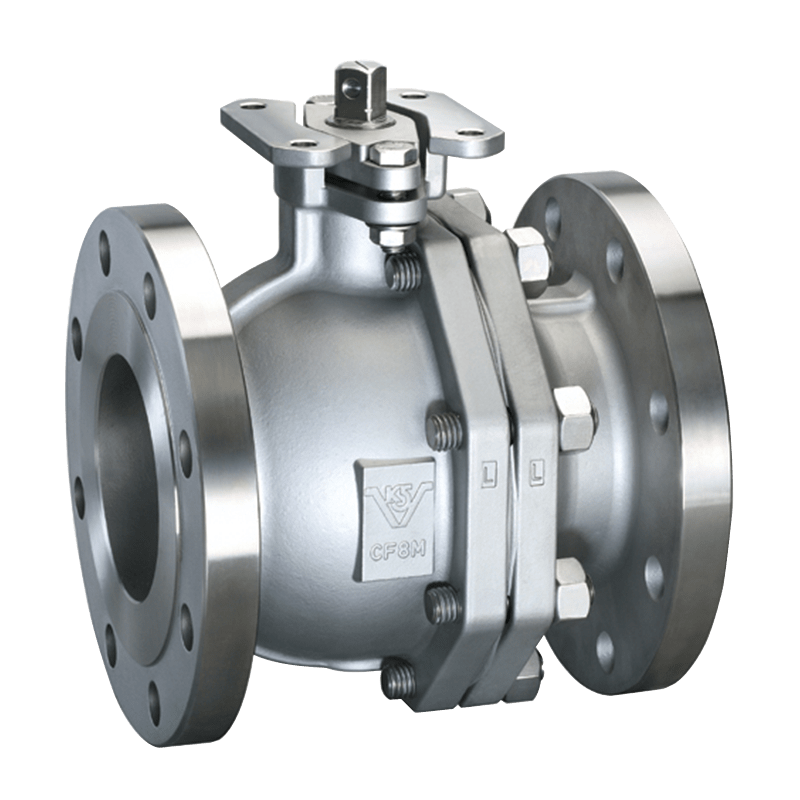

F203H/F233H

PRODUCT FEATURES

• Two-Piece Flanged Ball Valve
• Full compliant to ASME B16.34
• Fire-tested to API 607, certified by LR
•  ISO 5211 Direct Mounting Pad
• Blow-out Proof Stem
• Anti-Static Design
• Lever Locking Handle, Gear Operator

SPECIFICATION

• Investment Casting or Sand Casting Body
• PN 16/40
• Pressure rating:

For CF8M, Class 150 at 19 bar and Class 300 at 49.6 bar

For WCB, Class 150 at 19.6 bar and Class 300 at 51.1 bar

• Size Available:

Class 150: 1/2″ to 8″

Class 300: 1/2” to 6”

• Steam 150 PSI (PTFE SEATS)
• Material: EN10213-1.4408 / EN10213-1.0619
